CNC Aluminum
Body
Hot-Swappable
Switches
North-Facing
RGB
ANSI/ISO
Layout
Supports Mac
& Windows
Connects up to
4 devices
Software for
Customization
2 in 1 Sound
Absorbing Foam
COMPACT
A 60% layout fully customizable budget mechanical keyboard for both Mac and Windows with silent Gasket Mount design, hot-swappable, CNC aluminum case.
INTRODUCING
EPOMAKER Lite
The Epomaker Lite is a 60% layout fully customizable wireless mechanical keyboard with our innovative and patented Gasket Design. We’ve achieved a high quality gasket mounted aluminum keyboard with a great sound, comfortable flexibility, and a durable build to offer a premium experience at a budget friendly price!
From the keyboard community, for the community!
Enhanced Typing Experience
Experience the next generation of typing sounds and comfort with our innovative Epomaker Shallow Gasket Mount Design. It provides a unique gentle resonance and elastic fingertip tactility that is unlike any other designs.
Patented Shallow Gasket Mount Design
It’s the world’s first innovative Shallow Gasket structure with a single lower cover instead of a sandwich biscuit structure like traditional mechanical keyboards.
The amplitude of the gasket elasticity is controlled within 1mm, providing a firm and stable typing experience while adding a slight elastic character. The structural stability and rigid connections are on par with traditional keyboards, yet the gasket design provides a completely unique tactile sensation.

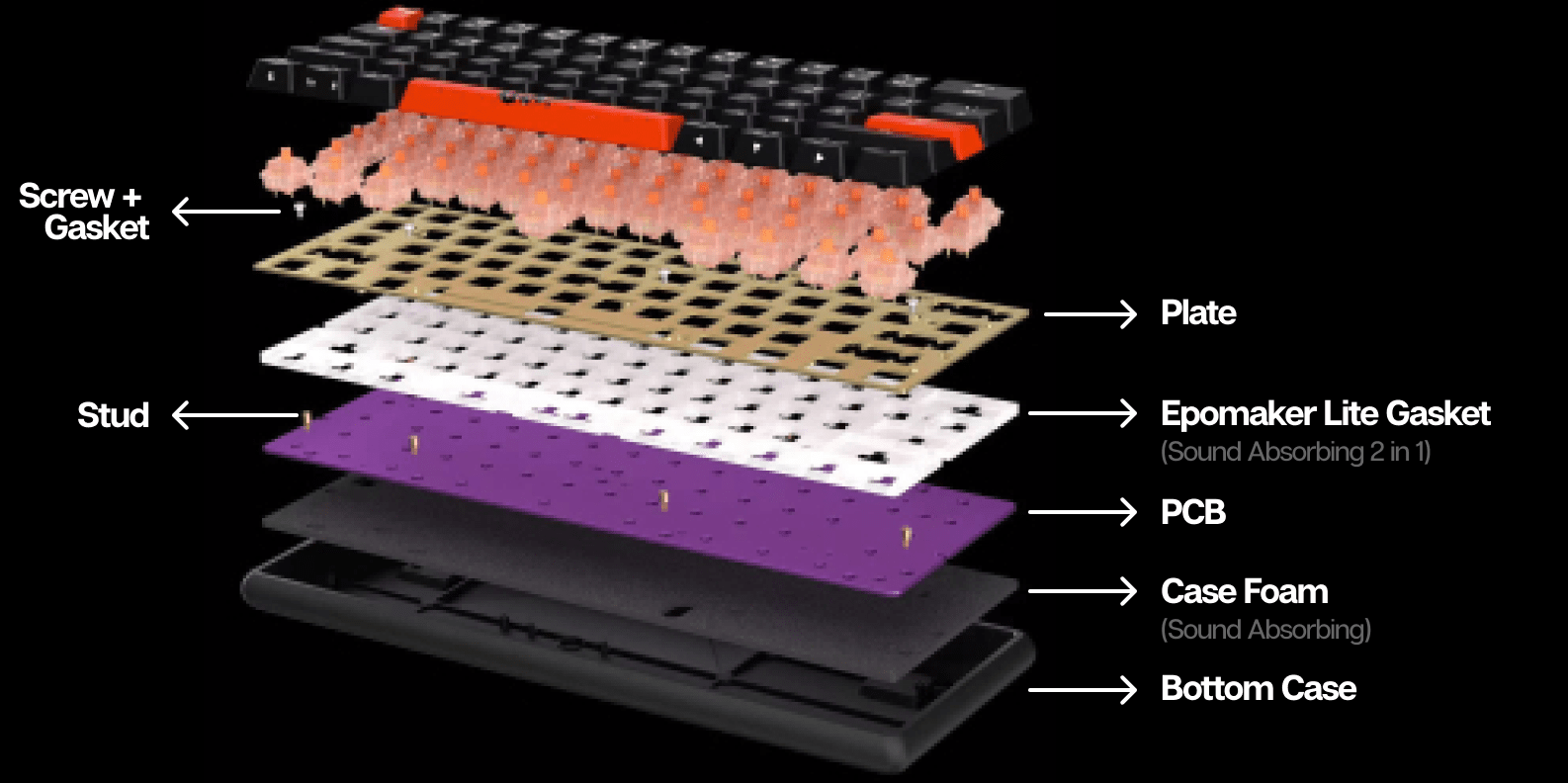

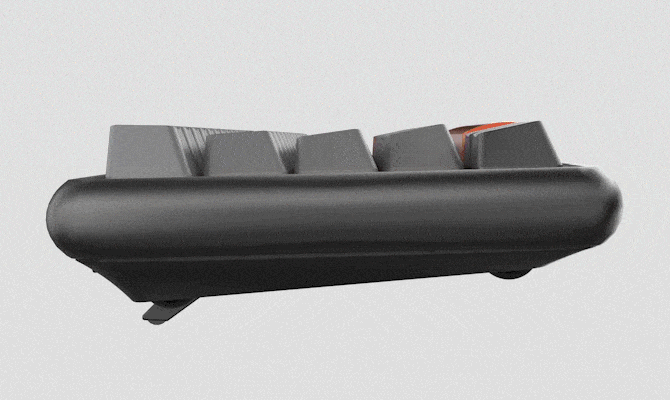

How our Patented Shallow Gasket Mount Design Works
It’s the world’s first innovative Shallow Gasket structure with a single lower cover instead of a sandwich gasket structure like the traditional.
Avoids the weakness of the traditional sandwich gasket structures with the upper and lower lids: Typical keyboard structures only have the soft cushion padding on the edges of the keyboard, leaving the center empty.
Main components such as Plate, PCB, and Metal Case are compatible with GH60 structure. We plan to share the CAD official positioning size data of the Epomaker Shallow Gasket structure to the GH60 open source organization.

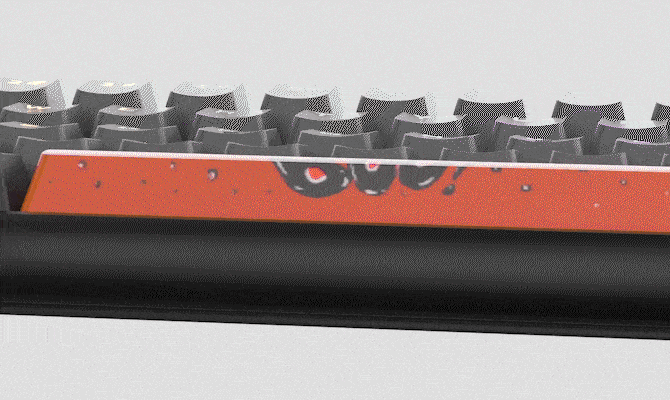

How Gasket Mounting Works
Gasket mounting is a type of plate mounting, where no screw holes are drilled into the switch plate. Instead, the switch plate is wedged in between the case layers and PCB through the support of rubber strips, or gaskets. The gaskets are the main contact points between the inner bottom of the case, the pcb and top plate.
Sandwich Gasket - Example 1.
Gasket attached to Plate/PCB combo sits on ledge of bottom case, plate doesn’t touch the bottom case.
Sandwich Gasket - Example 2.
Gasket tabs on top case touching the plate. Top Case makes all gasket keyboards look similar in design.

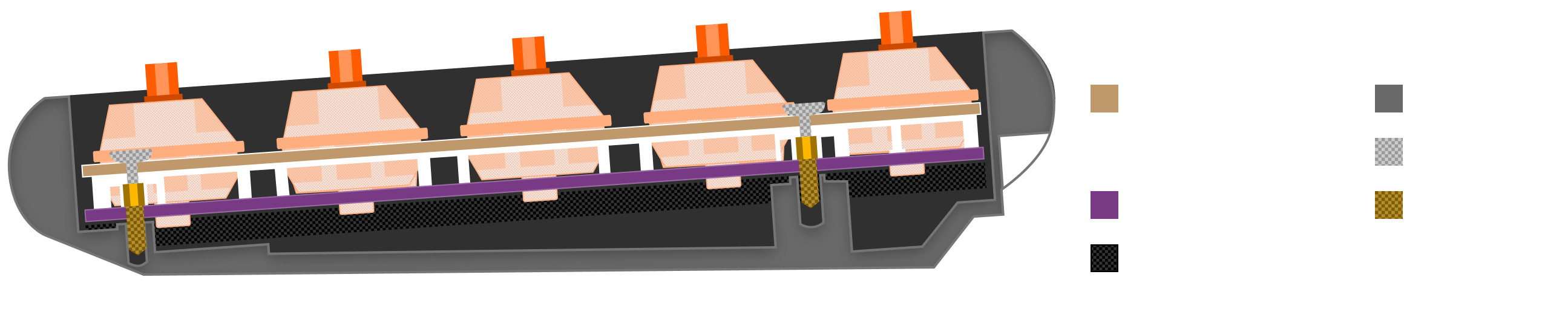

The traditional Gasket mount is a gasket structure which uses the screw to connect the case and the mount plate is sandwiched between the two shells by the pressure.
The screws are placed only on the edges of the aluminum casing, and the central body of the case lacks screws. This allows a completely flushed design for the upper and lower layers of the plate, PCB board, and switches, which are all supported by a fundamental gasket layer. This structural design creates a complete uniformity for every key, while adding the benefit of a slight vertical cushioning to provide a warmer tactility.

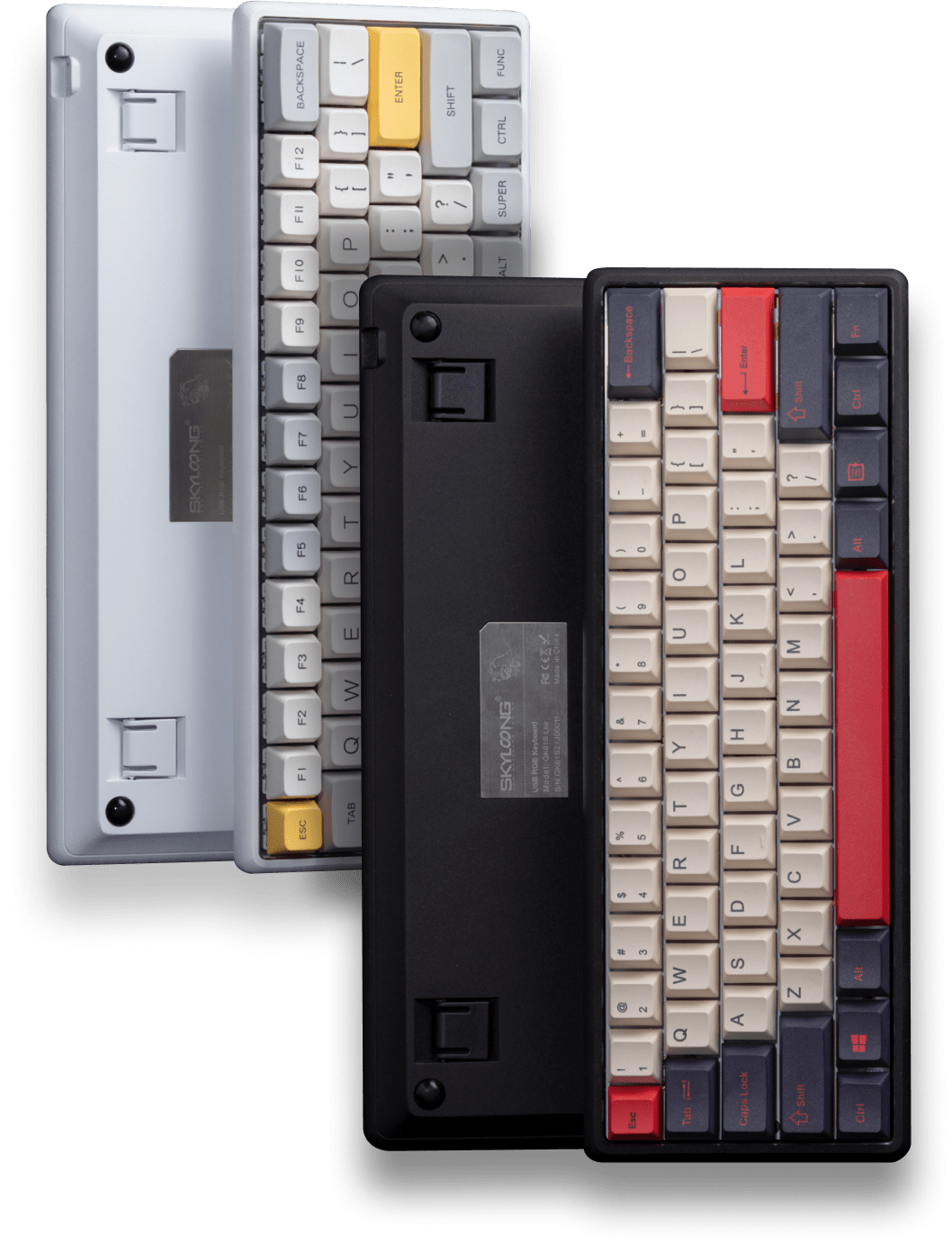

Fully Metal Body
Built with a full CNC-machined aluminum body that has a polished and sandblasted finish, the Epomaker Lite keyboard delivers a solid and elegant craftsmanship.
WIRED OR WIRELESS
Designed for versatility, the Lite is available in two distinct modes: wireless (Bluetooth 5.1) and wired (USB-C).
With Bluetooth 5.1, it seamlessly integrates with your phone, laptop, or tablet. The keyboard utilizes the latest Bluetooth chipset, allowing up to three devices to be connected at once. It can also easily switch between devices for efficient multitasking and speedy performance. You can connect wirelessly just by pressing the BlueTooth button on or off.

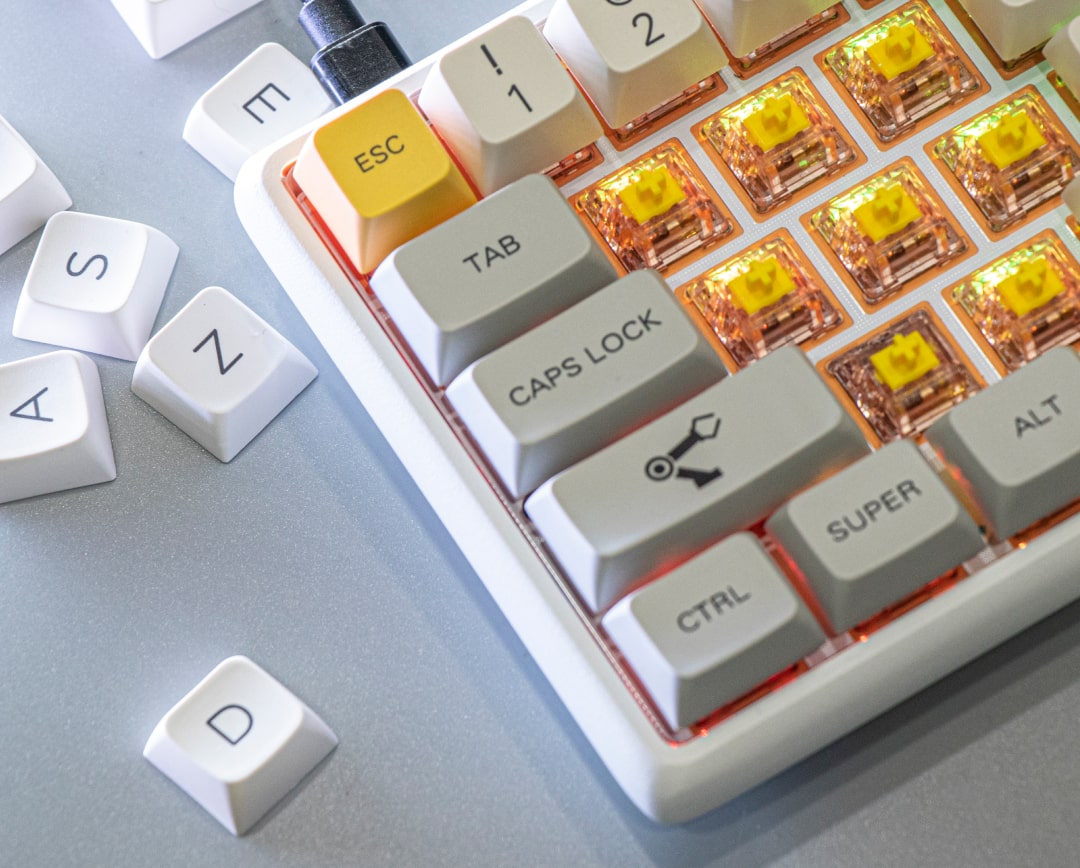

HOT-SWAPPABLE
Thanks to the hot-swappable feature, you can simply change any switches on the Lite to customize your typing experience with ease.
Simply change any switches on the Epomaker Lite to customize your typing experience with ease. It comes with our pre-lubed exclusive Gateron switches and Epomaker Chocolate switches on fully assembled versions that deliver a consistent and smooth downstroke. The PCB supports both 3 pin and 5 pin MX mechanical switches.

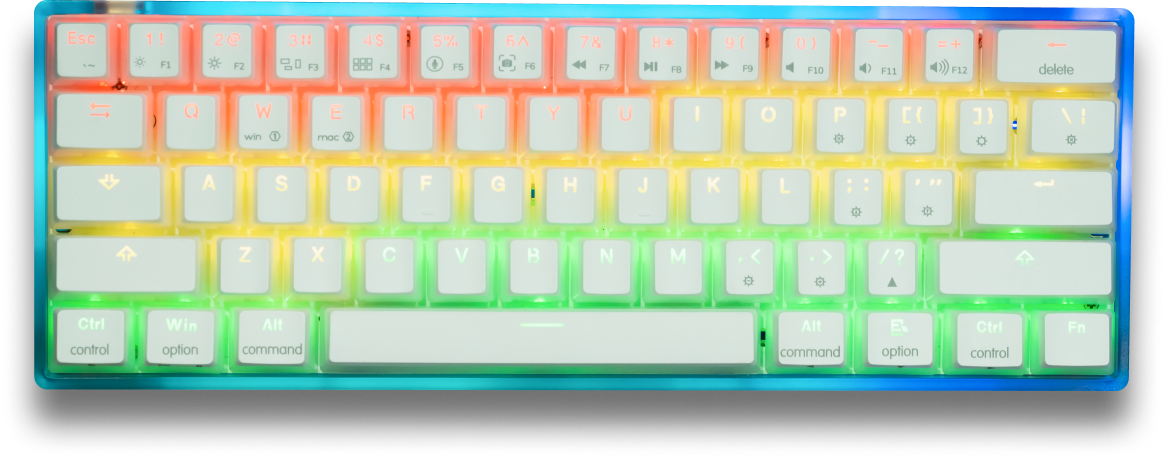

16M+ RGB COLORS
Featuring RGB lighting with 16 million LED colors, the Lite integrates beautifully with your desk.
The Lite carries 9 different types of default lighting effects and can further be customized with the included software. All lighting effects are quickly loaded via the provided software, and you can even create your unique styles by using the lighting suite. Simply connect the keyboard using a USB cable to update the software and the available effects.

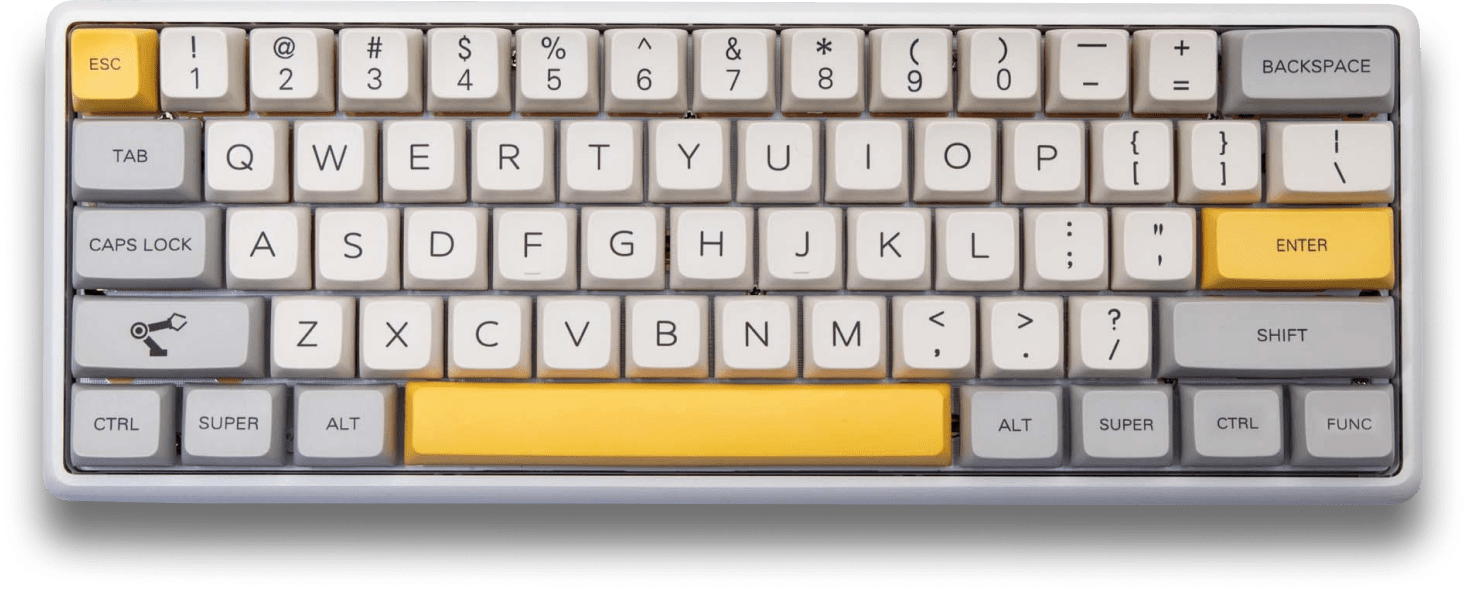

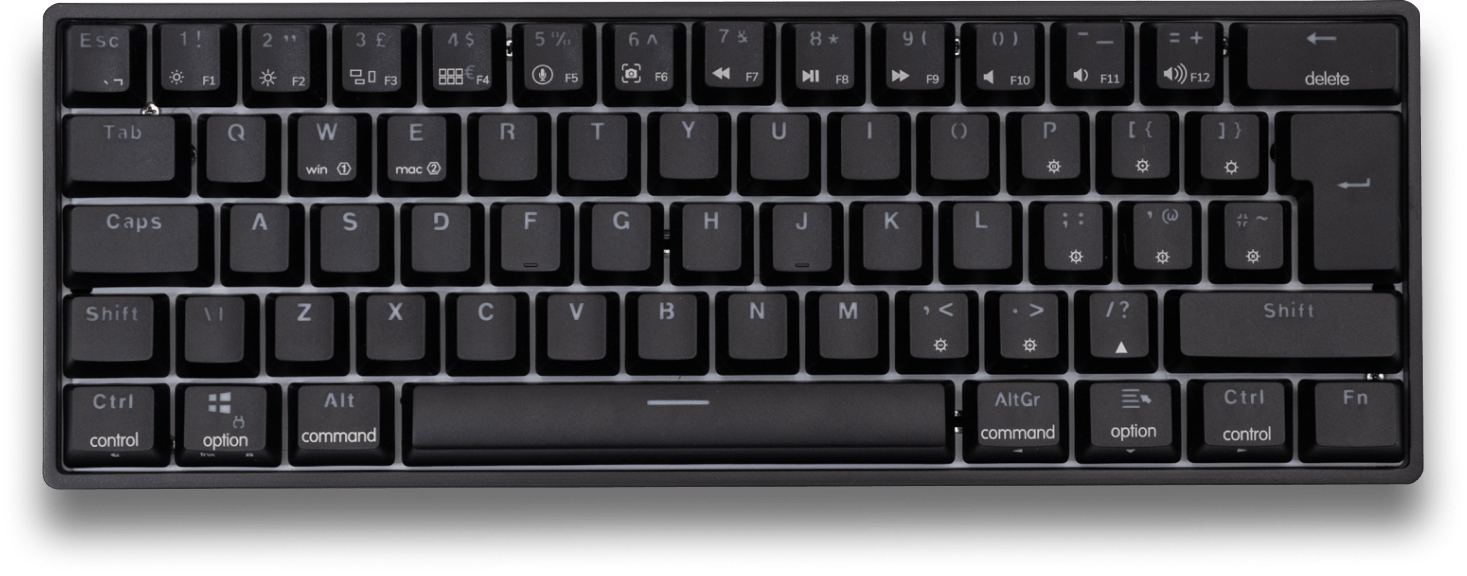

Fully Customizable
You can customize your keys, RGB or Macros on Windows or on Mac.
Most mechanical keyboards on the market are designed primarily for the Windows operating system, meaning macOS users have to rely on cumbersome macro and function keys for maximal usage. To provide a more intelligent and functional mechanical keyboard, the layout of the Lite is optimized with macOS first in mind, allowing typers to experience a natural and intuitive workflow.
