Epomaker Alice QMK/VIA DIY Kit

Alice QMK/VIA gasket-mounted hot-swappable acrylic wired mechanical keyboard DIY kit

  • Ergonomic Alice Split Design
  • VIA/QMK Programmable
  • Gasket-mounted
  • Stacked Acrylic Clear Case with Amazing RGB Backlights
  • Type-C Connection & Compatible with Windows/Mac
  • South-facing LEDs and underglows

Note: Keycaps in the photos are samples. They are not on sale.

Preorders will be shipped in two weeks.

Glass Purple
Glass Green
Transparent
Regular price $95.00
Sale price $95.00 Regular price

Free standard shipping to most countries

Enjoy free shipping to most countries*. Please refer to our shipping FAQ to see if you apply.

7-Day Return Policy

You may return any non-customized and non-sales product that is sealed, within the 7 days upon receiving it.

PRODUCT DESCRIPTION

Alice Style Mechanical DIY Keyboard Kit

Laying hands on each side of a split keyboard is an ergonomic move, and now we make it! To be an exceptional DIY keyboard kit, Epomaker Alice adopts the ‘arisu’ layout which is slightly different from the traditional alice layout. It is splitted based on a 65% keyboard, developed from the original Alice layout to meet the demand for arrows keys and some function keys on one side.

Gasket Mount & Sound Absorption Cotton

Gasket mount keyboards are well-known for giving a cushioned typing feel, as the plate is not in direct contact with the case housings. Compared with other mounting systems, a gasket-mounted keyboard, especially with a PC plate, can provide a rebouncing typing experience because the gaskets cushion the shock from each keystroke. As to the sound, we go with the sound absorption cotton in between the plate and the PCB board, so the keyboard sounds and feels soft.

VIA/QMK Programmable

Epomaker Alice DIY kit is programmable by VIA/QMK. For users who are not used to the alice split layout, there’s nothing more convenient than remapping the keys by VIA without reflashing its own firmware. The changes can be saved on board, and be worry-free about losing the saved memory while unplugging and replugging the keyboard. Being compatible with QMK, there's a great potential of being programmed and modded in the Epomaker Alice for you to discover.

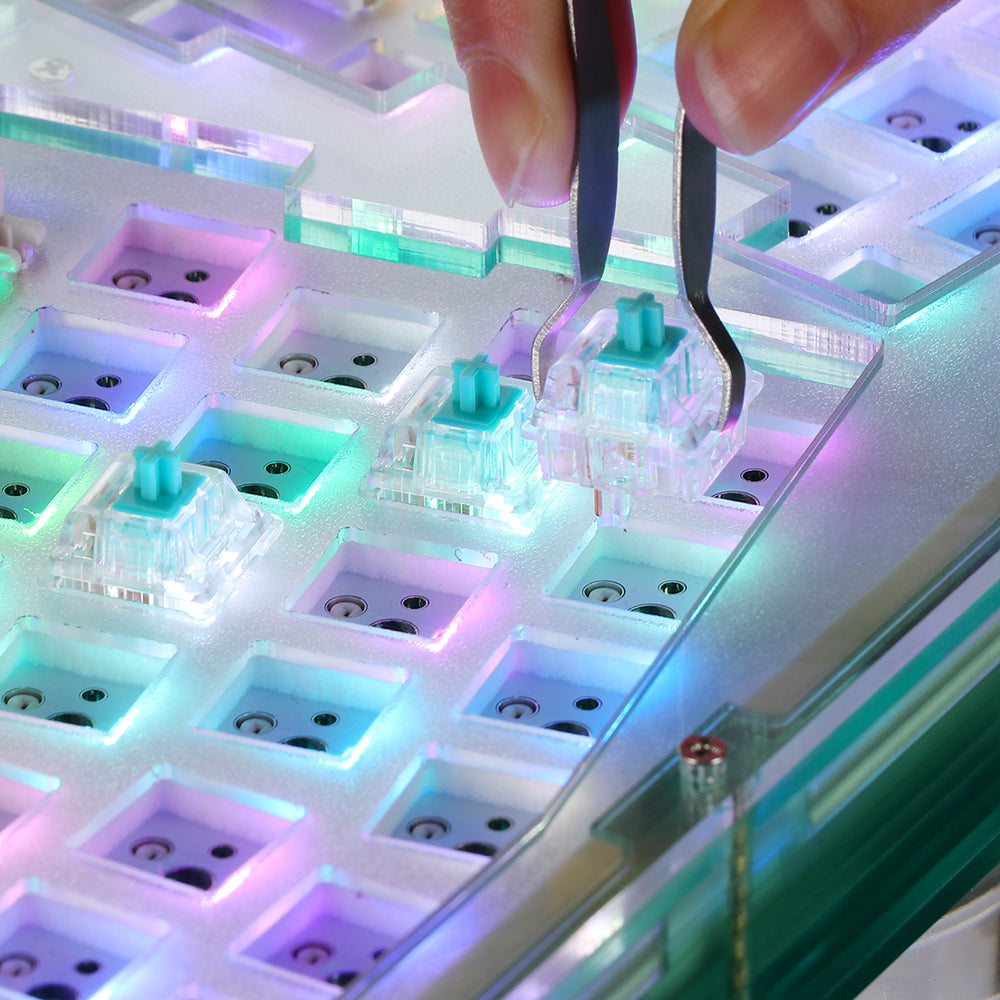

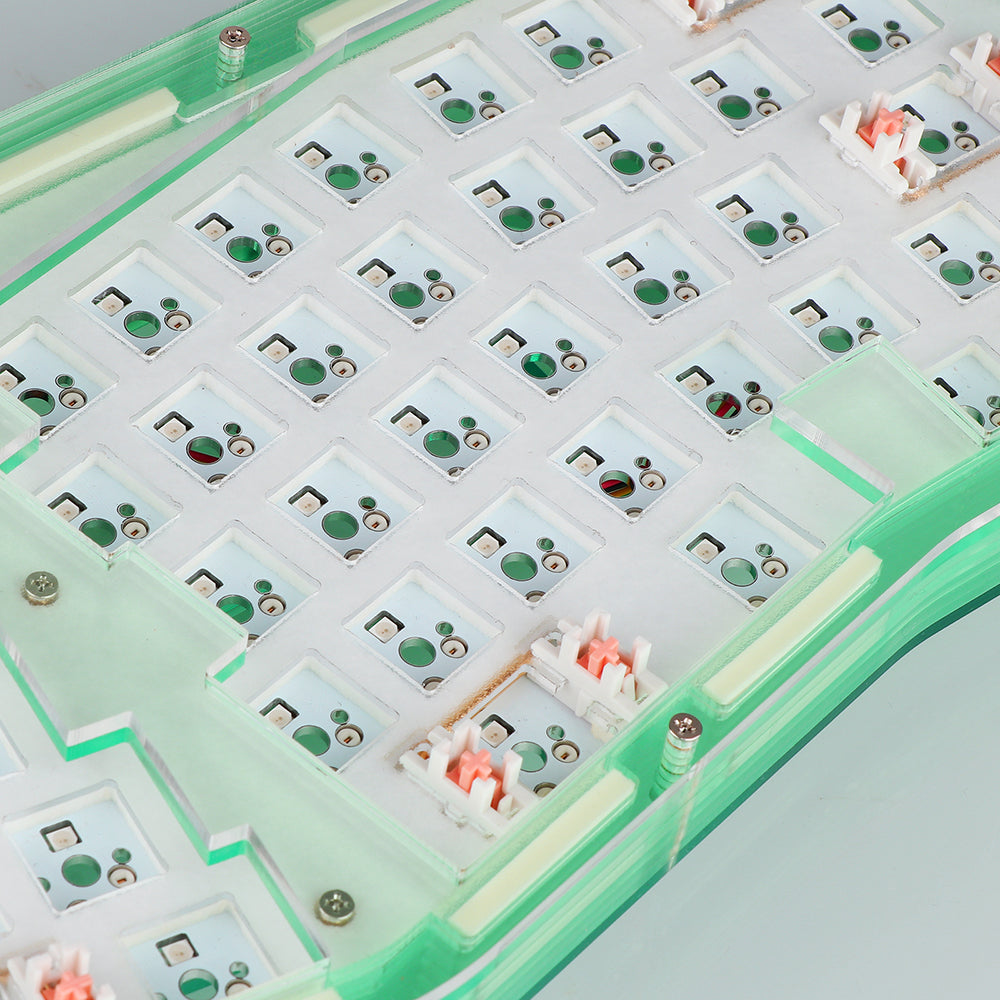

3-Pin & 5-Pin Hot-Swappable PCB

As a DIY keyboard, hot-swappable sockets on the PCB are convenient for changing mechanical switches at will without having trouble soldering. Being both 3 and 5-pin hot-swap, you can install or change the general 3-pin and 5-pin switches to the keyboard at will. The Epomaker Alice DIY kit indeed includes a variety of features that appeal to gamers and DIY enthusiasts. Customizing your own Alice keyboard just sounds right!

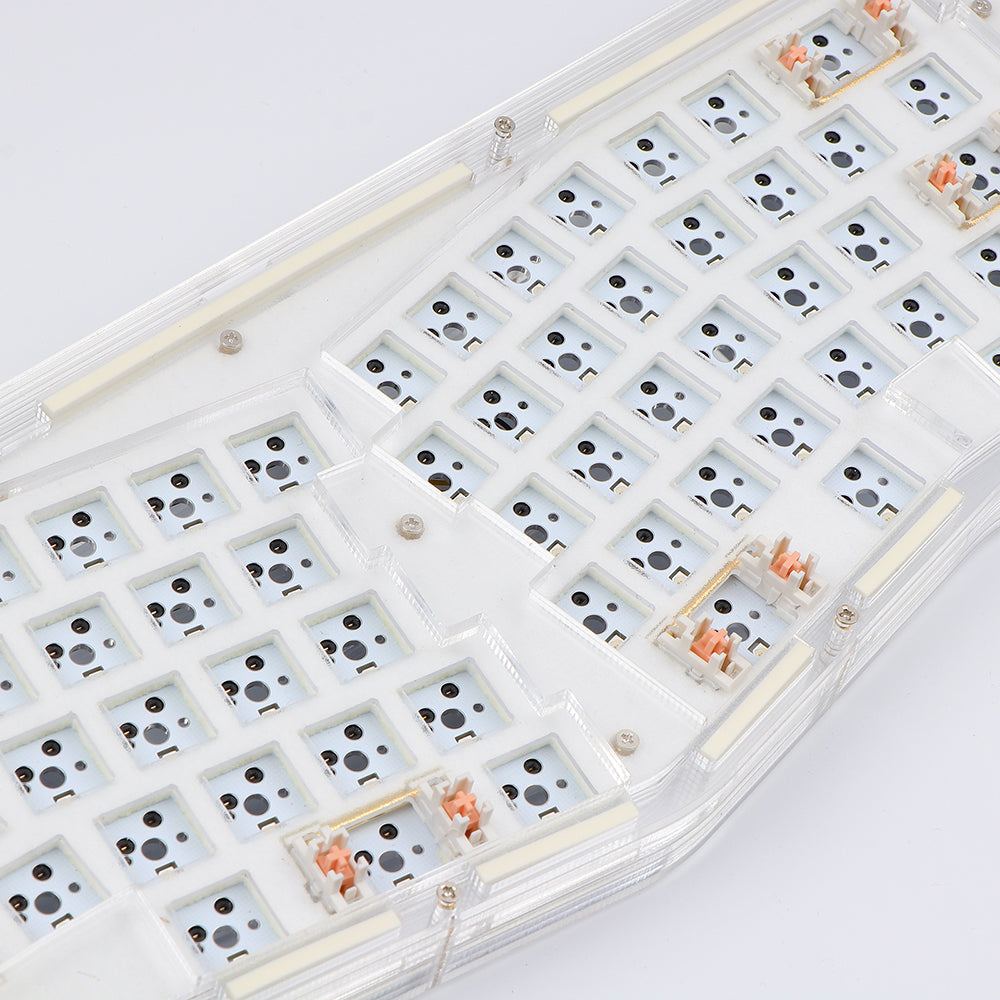

Refinedly Tuned Plate-mounted Stabilizers

The stabilizers that come with this DIY kit are refinedly tuned to prevent rattling on large keys like spacebars and modifiers. With the general 2u stabilizers which are easily to be found around the market, Epomaker Alice DIY mechanical keyboard kit offers a premium stable typing experience as well as providing another option for DIY enthusiasts to unlock more fun of changing stabilizers.

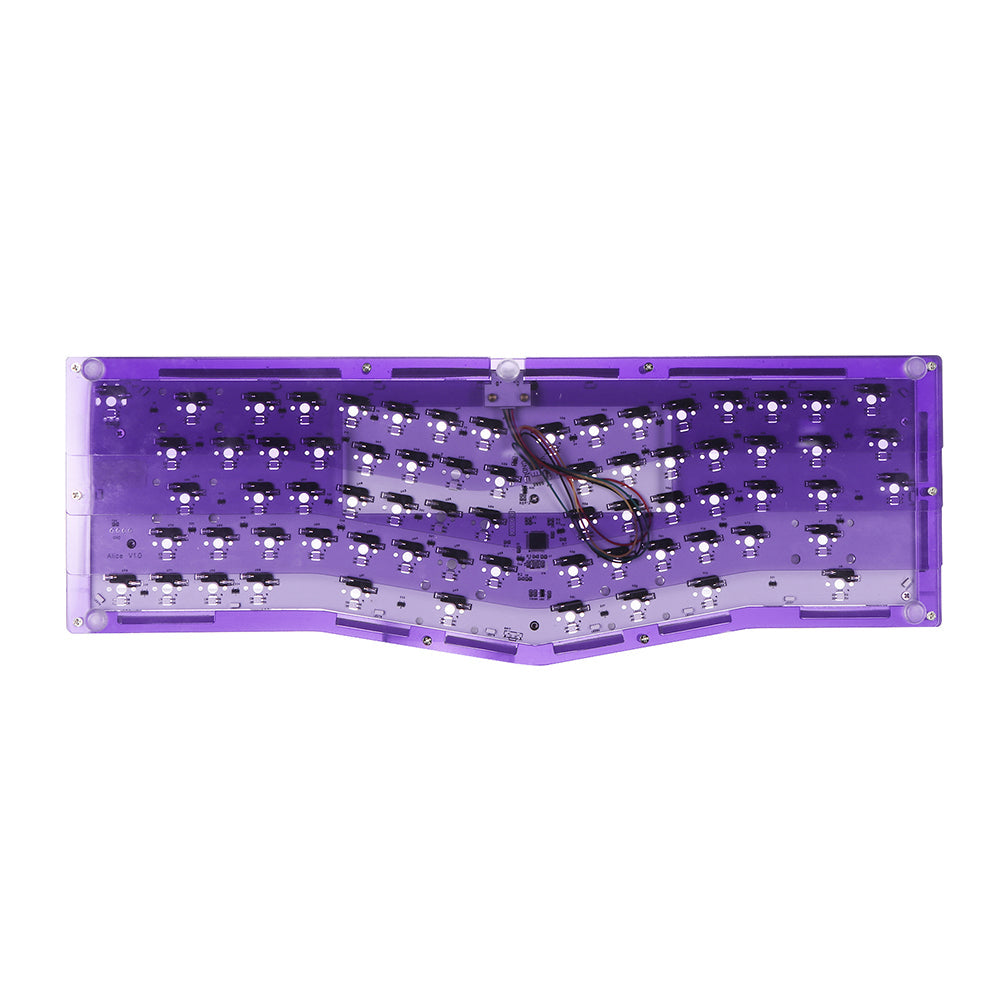

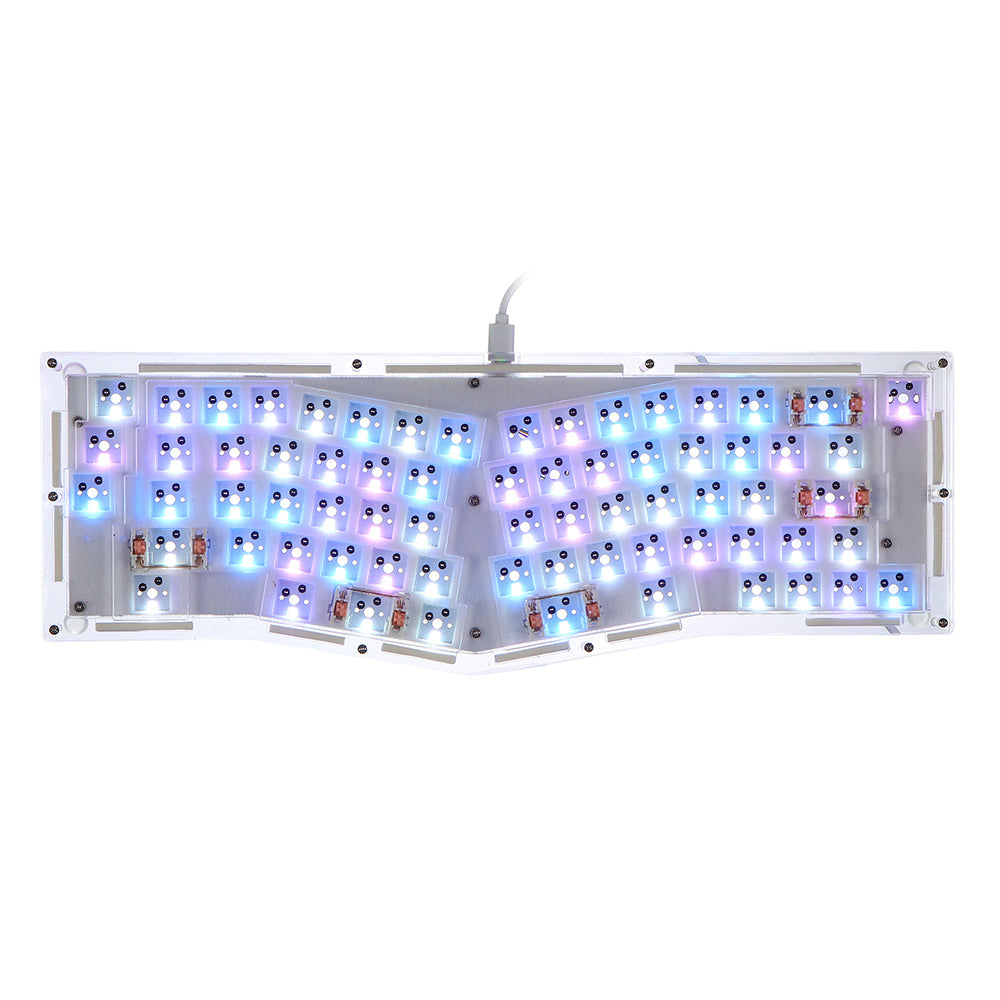

Stacked Acrylic Case with Amazing RGB Backlights

Acrylic-based keyboards are cool to typists as they can be much brighter with backlights. Epomaker Alice DIY kit applies full acrylic pieces stacked to a complete case and installs LEDs and RGB modules on the PCB. The backlight can shine not only through the sockets but also from the sides of the keyboard, creating a visible environment even under dark conditions.

Technical Specifications

Layout
Alice split, 69 Keys
Hot-Swap
Support 3/5-pin switches
Switch Type
Mechanical Cherry MX Style switches
Backlight
RGB
Connectivity
USB-C
Case Material
Stacked Clear Acrylic
Software
VIA/QMK Compatible
Special key size
  • R-Shift: 1.25u
  • L-Spacebar: 2u
  • R-Spacebar: 2.75u
  • Dimension
    327*170*30mm
    Inside the box
    • Epomaker Alice QMK/VIA Kit (including PCB, Mounting Plate, Stabilizers)
    • Type-C Cable

    Downloads

    Customer Reviews

    Based on 9 reviews
    33%
    (3)
    11%
    (1)
    22%
    (2)
    22%
    (2)
    11%
    (1)
    C
    Customer
    G

    F

    s
    shirley lu
    Never received it

    Epomaker put the wrong shipping address for my item, it was “returned to sender”. I haven’t heard back from customer service other than that it’ll be destroyed when they receive the “return”

    Hello,

    Thank you for leaving a review here.

    We are so sorry for the issue you met. It could cause an incomplete address if you didn't include 'Apt.#'. before your house or apartment number. But we are working on to improve this process to avoid the issue you met.

    In the meanwhile, you can also choose to add shipipng fees to upgrade the shipping for your order. The express shipping will greatly avoid such matters. If you agree to upgrade the shipping method, our support will be happy to help you with it.

    Thank you for your understanding.

    Kind regards,
    Epomaker Team

    A
    Andres Hernandez
    Great Keyboard

    It went pretty well in the build even though a little fragile but it was described like it so its pretty ok

    J
    Jennilyn Gabor
    A few squeaky spots...

    This is my first keyboard from epomarker and I absolutely love it along with the Alice Adventure keycaps... however there are two really squeaky spots. When I lean my hands just a little on the bottom left corner of the keyboard, it squeaks. It's like styrofoam. The left Shift and Control keys are extremely squeaky...

    Other than that. I'm pretty happy with the board. It just sucks that I'm not comfortable with opening the keyboard to see if I can fix the squeaky keys.

    Hello,

    Thank you for leaving a review here.

    We are so sorry that you found the keyboard not satisfying at some points. We will share your opinions with the factory to avoid the issue you met.

    If you have met any problems about the keyboard, please feel free to contact us by emailing to support@epomaker.com and attaching your order number. Our support will be happy to help you out.

    If you have other thoughts on the product, feel free to leave a review here.

    Thank you for your understanding.

    Kind regards,
    Epomaker Team

    G
    G.b.
    Really happy with my build

    Compared to the other reviews, I am in love this with keyboard base. It looks stunning, it was easy to put together, the VIA json file worked great (i received mine later than the other reviewers so it was fixed before I tried to use it). I also do not have any sort of squeaking or noise from the keyboard base. I'm really happy with it, it looks stunning and feels great as my daily keyboard.
